Factory wholesale 100vac to 240vac 36 volt 21a 20a 48v 18a ez go golf cart charger
36V 20a 21a 48V 18a golf cart charger is automatic intelligent charger for lead acid batteries. We can supply difference output plug to meet your difference golf cart , such as ezgo txt plug , rxv plug , club car , 2 crowfoot plug , yamaha plug etc .The golf cart charger with LED display show voltage and current and with multi-protection and led indicator, high efficiency and safety, that is good good for prolonging your batteries' lives !
Feature :
1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 1500W /1200W
4. Charge mode : 3 stage CC CV float mode for lead acid battery charger ,
5. Charging : High saturation and efficiency
6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc
The battery charger specification :
| Nominal Output Voltage | CV | CC | Transition / Cut-off Current | Net Weight | Size |
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid (A) | Li(A) | (kg) | (mm) |
| DL1200W-36V | 44.1V | 42.0V | 43.8V | 21A | 4.2 | 1.05 | 5.5 | 300*175*90 |
| DL1500W-36V | 25A | 5.0 | 1.25 |
| DL1500W-48V | 58.8V | 54.6V | 58.4V | 25A | 5.0 | 1.25 |
| DL1200W-48V | 18A | 3.6 | 0.9 |
| DL1500W-72V | 88.2V | 84V | 87.6V | 15A | 4.0 | 1.0 |
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
Advantage :
1. full automatic transition of cc cv and float/ cut-off ( cc cv 2 or 3 stage charger)
2. Precise limit of voltage& current, guarantee fully charged and avoid over charger
3. Protections : short circuit, over voltage, over-temperature, reverse polarity protections, Dc output isolated from AC input
4. High Efficient : > 85% PFC :0.96 Eco-friendly
5. Two led indicators LED1 Red ( power on ), LED 2 Red/Green ( charging/full )
6. Safety and high quality, Advantage high frequency switching mode power supply technology
7. LED display show current and voltage , convenience to know amp & voltage.
Charging Procedure :
- First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
- Then city power plug to socket , the indicator is red, charger will be into the charging state .
- When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
- When fully charged, disconnect the city power first, then disconnect the battery cable.
Package & Delivery
1. Package : one piece one neutral box , 2 pcs/ carton, can be customized
2. Delivery : 5 to 7 working days , big order according to actual quantity
3. Delivery port : Guangzhou port
4. Payment term : T/T or Western Union
5. Delivery way : by sea / by air / by express or as your requirement
For more information about our 24 v 48 v 36 v golf cart charger or other type battery chargers 12v 24v 36v 48v 60v 72v , welcome to contact us !
|
|

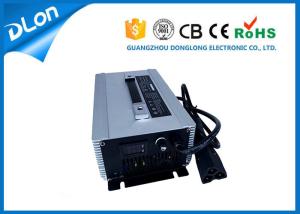

Factory wholesale 100vac to 240vac 36 volt 21a 20a 48v 18a ez go golf cart charger Images
|
